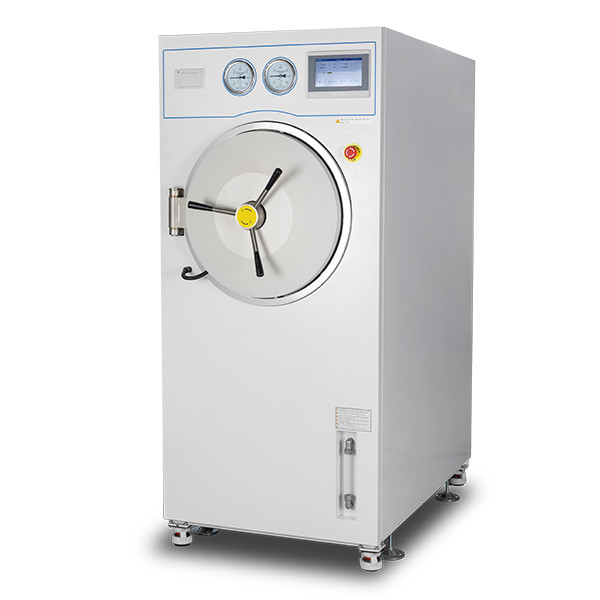

100L-450L High temperature touch screen vacuum autoclave sterilizer
Horizontal vacuum autoclave sterilizer uses saturated steam as sterilization medium, through pulsating vacuum way, the saturated steam completely penetrates to the surface of the article, uses high temperature saturated steam under high pressure to kill all microorganisms and their spores, the sterilization effect is reliable, is the most effective physical sterilization method.
It is widely used in pharmaceutical, biological engineering, laboratory and other fields to sterilize fabrics, instruments, lumen instruments, rubber, liquid and other items.
Main Parameter:
| Mode | STH-CV135 | STH-CV185 | STH-CV300 | STH-CV450 |
| Volume(L) | 135 | 185 | 300 | 450 |
| Chamber size(Φ×L) | 500×700 | 500×950 | 632×1000 | 632×1450 |
| Overall dimensions(L×W×H) | 1000×750×1750 | 1250×750×1750 | 1350×900×1850 | 1800×900×1850 |
| Weight(Kg ) | 225 | 255 | 350 | 450 |
| POWER | 380V/220V,50Hz,14Kw | 380V/220V,50Hz,14Kw | 380V/220V,50Hz,22Kw | 380V/220V,50Hz,32Kw |
| Design pressure | -0.1/0.3MPa; |
| Rated working pressure | 0.23MPa |
| Ultimate vacuum | -0.096MPa |
| Pressure display accuracy | 0.1kpa |
| Sterilization temperature | 105 ~ 136℃ |
| Temperature display accuracy | 0.1℃ |
| Maximum temperature | 136℃ |
| Temperature uniformity | ≤±0.5℃; |
| Cavity material | SUS304 stainless steel |
Product Details
Product Features:
-
Advanced Microcomputer Control with intuitive touch screen, fully automatic operation of pulsating vacuum, heating, sterilization, exhaust, and drying.
-
Real-Time Display of operating status, temperature, pressure, time, and fault alarms on the touch screen.
-
Multiple Sterilization Programs: instruments, dressings, luminal instruments, rubber, liquids, BD test, vacuum test, and custom cycles.
-
High-Efficiency Vacuum System: built-in vacuum pump, triple pulsating vacuum (adjustable), vacuum degree up to -0.090MPa, ensuring complete sterilization of dressings and Class A cavity instruments.
-
Built-In Steam Generator: rapid generation of constant pressure steam without contaminating sterilized items.
-
Vacuum Drying System: fabric dryness ≤1%, instrument dryness ≤0.1%.
-
Sterile Air Filtration: equipped with 0.22μm bacterial air filter to prevent re-contamination during vacuum break.
-
Optional Micro Printer: records the sterilization process and alarms in real time.
-
Comprehensive Safety Protection:
- Over-temperature automatic cutoff with alarm
- Safety door interlock—cannot open under pressure
- Double over-pressure protection with safety valve and automatic exhaust
- Low water level protection with alarm
Application:
Lab autoclave: glassware, culture medium, surgical instrument autoclave, biological waste (must be handled in compliance with regulations).
Hospital pressure autoclave: surgical instrument kits, dressing kits, fabrics.
Pharmaceutical /Bioengineering type: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).
Why Choose Us?
-
Manufacturer Autoclave Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
-
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
-
Custom Autoclave Sterilizer Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
-
Certified Gravity Cycle Autoclave Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
FAQ
- Q: What are your payment terms?
A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight. - Q: What is the delivery time?
A: About 25 working days for one unit. - Q: What certifications does the autoclave sterilizer have?
A: CE, ISO 13485, ISO 9001. - Q: What warranty and after-sales support do you offer? Is global support available?
A: 12-month warranty from installation. We offer:
① Remote technical support via phone, email, and video.
② Operation & maintenance training (manuals, online/on-site).
③ Ample spare parts stock.
24/7 technical response guaranteed. - Q: How do you ship the autoclaves?
A: Ship by Sea or Air
① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer. - Q: What trade terms do you support?
A: EXW, FOB, CFR, CIF, and DDP. - Q: Are you a factory or a trading company?
A: We are a steam sutoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
Related Products:
Besides this horizontal steam sterilizer autoclave, we also offer a wide range of vertical steam autoclave, Table top autoclave, rectangular vacuum autoclave, portable autoclave and customized sterilization solutions for various industries
