50L-1000l Digital Display Ordinary Ethylene Oxide Sterilizer
The STE-GM series ethylene oxide sterilizer is a special sterilization equipment that uses pure ethylene oxide and ethylene oxide mixed gas to carry out low - temperature fumigation sterilization on items sealed in the sterilization chamber under certain temperature, pressure, humidity and a certain action time. Ethylene oxide gas is a very active chemical disinfectant. It not only achieves broad - spectrum sterilization, but also can achieve reliable sterilization.
Main Parameter:
| Product Model | Power Supply | Inner Tank Capacity | Inner Tank Dimensions (Length×Width×Height, cm) | Outer Case Dimensions (Length×Width×Height, cm) |
| STE-GM50 | AC220V 50Hz | 70L | 60*30*40 | 77*49*107 |
| STE-GM100 | AC220V 50Hz | 120L | 60*40*50 | 77*60*115 |
| STE-GM168 | AC220V 50Hz | 168L | 67*43*59 | 83*64*123 |
| STE-GM200 | AC220V 50Hz | 200L | 70*47*62 | 86*65*126 |
| STE-GM268 | AC220V 50Hz | 268L | 75*54*67 | 92*75*131 |
| STE-GM300 | AC220V 50Hz | 300L | 80*54*69 | 99*77*133 |
| STE-GM500 | AC220V 50Hz | 500L | 96*67*79 | 112*88*149 |
| STE-GM800 | AC220V 50Hz | 800L | 103*87*90 | 121*108*161 |
| STE-GM1000 | AC220V 50Hz | 1000L | 120*87*98 | 138*108*168 |

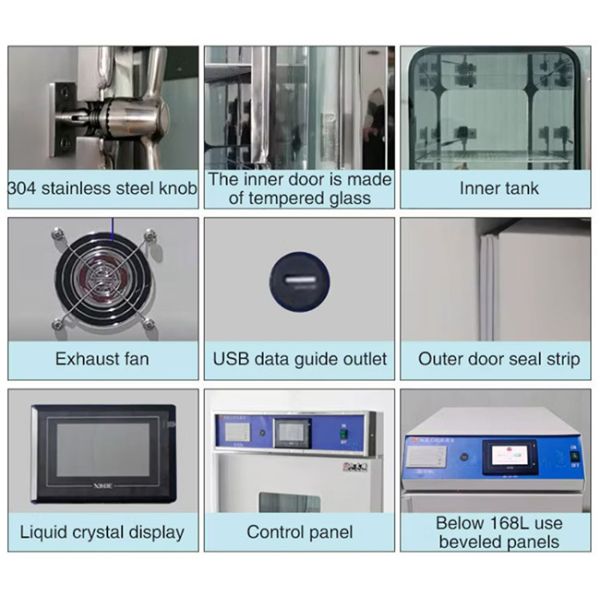

Product Details
Product Features:
The ethylene oxide sterilizer produces a very specific alkylation effect through the contact of ethylene oxide with microorganisms, thus inhibiting the normal operation of the reaction groups of microorganisms and causing their metabolism to be disrupted and die.
①Simple Operation
One - key operation, microcomputer control, simple and convenient, with digital display of the sterilization process.
②Print Record
Record and print sterilization information during the sterilization process, facilitating inspection and filing.
③Filtration System
An inlet filtration system is installed, which can effectively filter out pathogens and microorganisms, avoiding secondary pollution of residual exhaust air intake.
Consumables for Ethylene Oxide Sterilizer:
Ethylene oxide gas, ethylene oxide biological indicator, ethylene oxide indicator tape, ethylene oxide indicator inner card, ethylene oxide indicator outer card, ethylene oxide packaging bag.
Application:
- Hospitals & Clinics: Sterilizing heat-sensitive surgical instruments (e.g., laparoscopes, robotic surgery tools), endoscopes, and ophthalmic equipment without thermal damage.
- Dental Practices: Safe processing of dental handpieces, implants, and delicate orthodontic devices.
- Reusable flexible endoscopes (colonoscopes, bronchoscopes), camera systems, fiber-optic cables, and polymer-based devices that degrade in steam sterilizers.
- Biomedical Labs: Decontaminating research tools, tissue culture equipment, and sensitive biosafety materials.
- Veterinary Centers: Sterilizing animal surgery instruments and diagnostic scopes.
Our Factory
Why Choose Us?
-
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
-
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
-
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
-
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
FAQ
- Q: What are your payment terms?
A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight. - Q: What is the delivery time?
A: About 20 working days for one unit. - Q: What certifications does the sterilizer have?
A: CE, ISO 13485, ISO 9001. - Q: What warranty and after-sales support do you offer? Is global support available?
A: 12-month warranty from installation. We offer:
① Remote technical support via phone, email, and video.
② Operation & maintenance training (manuals, online/on-site).
③ Ample spare parts stock.
24/7 technical response guaranteed. - Q: How do you ship the products?
A: Ship by Sea or Air
① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer. - Q: What trade terms do you support?
A: EXW, FOB, CFR, CIF, and DDP. - Q: Are you a factory or a trading company?
A: We are a manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
