Intelligent Ethylene Oxide Eto Sterilization PLC Control Ethylene Oxide Autoclave

Name: Intelligent Ethylene Oxide Eto Sterilization PLC Control Ethylene Oxide Autoclave
Brand: Stertek
Price: 3666 USD

Wholesale Intelligent Ethylene Oxide Eto Sterilization PLC Control Ethylene Oxide Autoclave from china suppliers

Brand Name : Stertek

Model Number : STE-G3000

Certification : CE, ISO13485,ISO9001

Place of Origin : China

MOQ : 1

Price : 3666USD-30000USD

Payment Terms : L/C,T/T,Western Union,MoneyGram

Supply Ability : 1000pcs/month

Delivery Time : 45days

Packaging Details : Standard Export Wooden Case

Door opening mode : Fan-shaped or movable doors are optional

Inner material : 304 Stainess Steel

Display : PLC touch screen

Data Recording : Printer Equipped

Sterilization humidity : 30%-90%

Sterilizing temperature : 35℃-55℃

Machine Size : 2600*1600*2150mm

Net Weight : 1500kg

Voltage : 380V

Power : 7kw

Contact Now

PLC Intelligent Control System Large Scale ETO Gas Ethylene Oxide Sterilizer

This ethylene oxide sterilizer is a special equipment that uses ethylene oxide gas to fumigate and sterilize articles sealed in sterilization room at a certain temperature (low temperature), pressure, humidity and a certain time. Ethylene oxide gas is a lively and strong chemical disinfectant, which can not only achieve broad spectrum sterilization, but also achieve reliable sterilization.

Application:

Hospitals & Clinics: Sterilizing heat-sensitive surgical instruments (e.g., laparoscopes, robotic surgery tools), endoscopes, and ophthalmic equipment without thermal damage.
Dental Practices: Safe processing of dental handpieces, implants, and delicate orthodontic devices.
Reusable flexible endoscopes (colonoscopes, bronchoscopes), camera systems, fiber-optic cables, and polymer-based devices that degrade in steam sterilizers.
Biomedical Labs: Decontaminating research tools, tissue culture equipment, and sensitive biosafety materials.
Veterinary Centers: Sterilizing animal surgery instruments and diagnostic scopes.

Main Parameter:

Model	STE-G3000
Power	7KVA
Inner container size	170012001500mm (allowable deviation ± 10%)
Outline dimension	260016002150mm (allowable deviation ± 10%)
Weight	About 1.5 tons (net weight)
Working pressure	-70kpa ~ 60kpa for 60min, and the leakage rate is less than 0.01kpa/min.
The sterilization temperature	35℃-55℃
Sterilization humidity	30%-90%

Product Details

Intelligent Ethylene Oxide Eto Sterilization PLC Control Ethylene Oxide Autoclave

Product Features:

Door opening mode: Fan-shaped or movable doors are optional
Inner material: Adopt 304 stainless steel national standard steel plate with thickness ≥6mm, and the whole plate is welded by argon arc welding. Rugged and durable, the service life of the inner container exceeds 10 years.
External material:Using high quality 304 stainless steel wire drawing plate δ = 1.2mm.
Mode of heating: High-quality widened PTC silica gel plate is used for heating on six sides, which has independent temperature control in all directions, good thermal conductivity and uniform temperature, and the inner container is provided with double protection of sterilization
Sterilizer door: Adopt single door structure, pneumatic single door seal (chute automatically opens and closes the door smoothly). In case of failure in use, it should always be locked and sealed.
Sealing mode: silicone rubber external inflatable seal.
Monitor instrument: The pressure, humidity and temperature monitoring device can automatically monitor in real time, and the accuracy and error are 1%.
The steam pipeline is made of SUS304. Equipped with automatic steam generator and corresponding pipelines to form an independent steam injection pipeline and filter (sterilization level).
Humidifying system: Automatic real-time monitoring, alarm when the humidity exceeds the set value, and humidity error in the cabinet: 5% RH.
Species of sterilization agent 80% ethylene oxide mixed with 20% carbon dioxide, single tank bottle connected dosage port injection dosing method, stable, high efficiency.
Residual removal system: The sterilizing agent is discharged, and the air enters the sterilizing chamber after being filtered by the filter. According to the sterilization process, filtered air can be introduced to normal pressure, and then the sterilization chamber is vacuumized for 9-99 times. After sterilization, the excess EO gas in the cabinet is pumped out by a water ring vacuum pump and fully mixed and dissolved with water at the same time.
Printer storage function: Self-contained micro-printing equipment can print and save sterilization records. Built-in storage, which can store more than 8000 sterilization records and alarm records. Equipped with USB sterilization data export function, which can export data with one-click operation.
Scope of application Suitable for sterilization of articles that are afraid of heat, humidity, negative pressure and ethylene oxide gas. For example: medical instruments, endoscopes, rubber and plastic products, medicines, textiles and biological products, cultural relics archives, instruments and meters, sanitary products, etc.

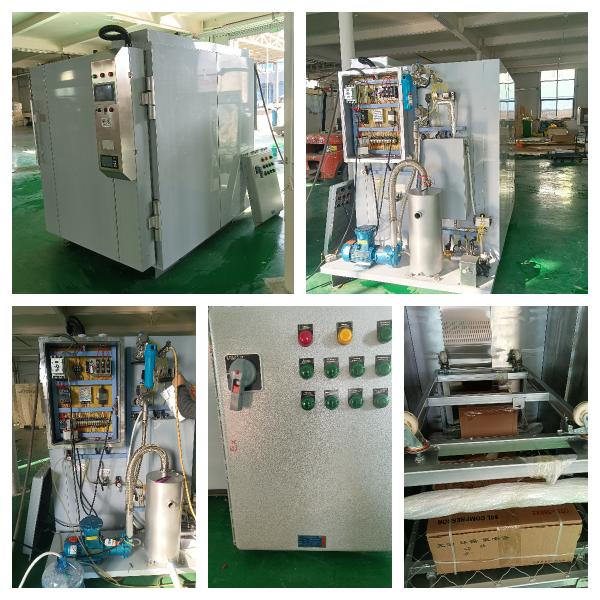

Our Factory

Intelligent Ethylene Oxide Eto Sterilization PLC Control Ethylene Oxide Autoclave

Why Choose Us?

Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

Q: What are your payment terms?
A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
Q: What is the delivery time?
A: About 45 working days for one unit.
Q: What certifications does the sterilizer have?
A: CE, ISO 13485, ISO 9001.
Q: What warranty and after-sales support do you offer? Is global support available?
A: 12-month warranty from installation. We offer:
① Remote technical support via phone, email, and video.
② Operation & maintenance training (manuals, online/on-site).
③ Ample spare parts stock.
24/7 technical response guaranteed.
Q: How do you ship the products?
A: Ship by Sea or Air
① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
Q: What trade terms do you support?
A: EXW, FOB, CFR, CIF, and DDP.
Q: Are you a factory or a trading company?
A: We are a manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
